3DR FPV Monitor

Part Number: RC801

FPV Monitor
  • FPV Monitor
  • FPV Monitor

Price:

$229.00

Specifications

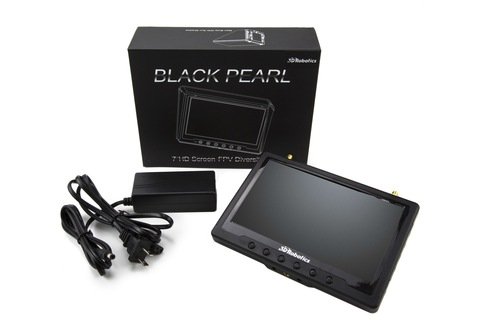

3DR FPV Monitor

7-inch FPV monitor from 3DR is ideal for capturing real-time mission images in the field. Even on the brightest days, the monitor is easy to see – with sharp contrasts and a LED backlight. The 5.8 GHz 32-channel wireless video receiver won't display a "blue screen" when the signal gets weak. This means you can fly farther without losing your first person view.

Small, lightweight and powerful, you can view two channels simultaneously for serious mission control.

  • Built-in dual receiver
  • Dual buffered AV outputs
  • Can receive two different channels at the same time
  • Not affected by 2.4 GHz R/C Radios
  • AV Receiver with diversity inputs
  • Small, light weight, durable
  • Includes charger
  • Includes sun shade

Specifications:

  • Screen size: 7 inches
  • Screen type: TFT LCD Screen/long life, LED backlight
  • Resolution: 800x480
  • Brightness: 450 cd/m2
  • Contrast: 500:1
  • View angle: 140/120 degree
  • Working voltage: DV 7-12 V (center positive) or 11.1 V Li-battery
  • Power consumption: < 8 w
  • Size: 180mm x 120 mm x 23 mm
  • Built-in 5.8 GHz dual diversity receiver automatically for best reception
  • Built-in 2CH 5.8 GHz AV output and 1-channel AV input
  • Multilanguage menu support
  • Working temperature: -10 degree to 65 degree centigrade
  • Working frequencies:
    • CH1: 5705 MHz
    • CH2: 5685 MHz
    • CH3: 5665 MHz
    • CH4: 5645 MHz
    • CH5: 5885 MHz
    • CH6: 5905 MHz
    • CH7: 5925 MHz
    • CH8: 5945 MHz



  • TOL Part #: RC801
  • Manufacturer's Part #: RC801
  • Model: FPV Monitor
  • Product ID: 5993
