AJA CION

Part Number: CION

AJA CION
  • AJA CION
  • AJA CION
  • AJA CION
  • AJA CION

Price:

$4,995.00
Add

Specifications

Weight 6.4 lbs; 7.4 lbs with top handle attached
Media Format AJA Pak SSD Media

AJA CION

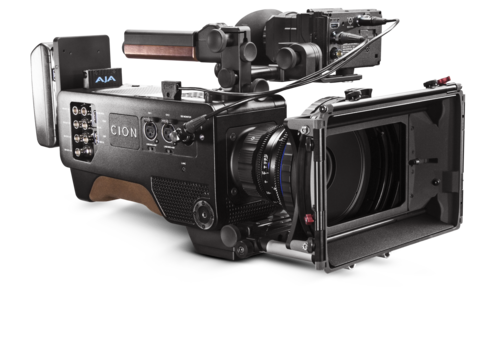

CION™ is the new 4K/UltraHD and 2K/HD production camera from AJA. Shoot direct to edit-ready Apple ProRes 444 at up to 4K 30fps, ProRes 422 at up to 4K 60fps, or output AJA Raw at up to 4K 120fps. CION is the union of great design and functionality, an engineered aesthetic that we are proud to describe as the Science of the Beautiful.

CION can encode 4K/UltraHD and 2K/HD directly to 12-bit ProRes 444 internally. Using this high quality and widely supported codec to record CION's film-like image and superb color rendition will provide the easiest route to post production for 4K yet. CION allows you to capture the look you need on-set, in-camera but with the latitude to create custom grades later by choice and not by necessity.

The ProRes 444 and 422 workflow for CION allows you to capture high quality images in an easily managed file format and size. The Pak dock provides fast transfer of footage footage into your local media storage and directly into a wide range of NLEs and finishing tools of choice with no need for transcoding. Native file recording means you're able to better connect production to post; keeping the image quality at it's highest throughout.

Each CION camera includes the following accessories as standard:

  • Handle Grip
  • Handle Mount
  • LANC collar
  • LANC cable
  • Standard Rear Door Plate
  • Alternate Rear Door Plate
  • Battery Adapter Plate
  • AC power supply

Technical Specifications:

  • User Interface:
    • 6x Dedicated Menu Buttons (STATUS, CONFIG, MEDIA, FPS, EI and WB)
    • 4x Transport Buttons (Play, Fast Forward, Reverse Playback, Stop)
    • 1x Media Unmount Button
    • 1x Record Button
    • 1x User Interface Control Knob
    • 1x User Interface Screen, 320x240 LCD
  • Sensor Type: CMOS, Electronic global shutter, 12 stops of dynamic range
  • Sensor Size: 4K APS-C sized, 22.5mm x 11.9mm
  • Shutter Angles Available (by Format):
    • 23.98 & 24: 360 / 180 (default) / 172.8 / 144 / 120 / 90 / 45 / 30 /15
    • 25: 360 / 300 / 180 (default) / 150 / 90 / 45 / 30 /15
    • 29.97 & 30: 360 / 216 / 180 (default) / 120 / 90 / 45 / 30 /15
    • 50: 360 / 300 / 180 (default) / 120 / 90 / 45 / 30 /15
    • 59.94 & 60: 360 / 216 / 180 (default) / 120 / 90 / 45 / 30 /15
    • 119.88 & 120: 360 / 216 / 180 (default) / 120 / 90 / 45 / 30 /15
  • Shutter Speeds Available (by Format):
    • 23.98 & 24: 1/24, 1/48 (default), 1/50, 1/60, 1/72, 1/96, 1/192, 1/288, 1/576
    • 25: 1/25, 1/30, 1/50 (default), 1/60, 1/100, 1/200, 1/300, 1/600
    • 29.97 & 30: 1/30, 1/50, 1/60 (default), 1/90, 1/120, 1/240, 1/360, 1/720
    • 50: 1/50, 1/60, 1/100 (default), 1/150, 1/200, 1/400, 1/600, 1/1200
    • 59.94 & 60: 1/60, 1/100, 1/120 (default), 1/180, 1/240, 1/480, 1/720, 1/1440
    • 119.88 & 120: 1/120, 1/200, 1/240 (default), 1/360, 1/480, 1/960, 1/1440, 1/2880
  • Exposure Index: 320, 500, 800, 1000
  • Color Correction: Normal, Flat, Skin Tones, Video
  • Gamma: Disabled, Normal, Normal Expanded, Video, Expanded 1
  • Lens Mount: Removable PL (positive lock); Third party EF, B4 and G-Mount mounts are available.
  • Filtration: Optical Low Pass Filter (OLPF) and IR Cut Filter (combined)
  • Removable Storage: Pak Media
  • Video Output:
    • 4x 3G-SDI Main Outputs (4x BNC connectors, 3G/1.485Gbps)
    • 2x 3G-SDI Monitor Outputs (1x front mounted BNC connector, 1x rear mounted BNC connector, 3G/1.485Gbps)
    • 2x HDMI Outputs (1x front mounted HDMI v1.3 Type A connector, 1x rear mounted HDMI v1.4 Type A connector)
  • Audio Input: 2x Balanced Analog Audio Inputs (2x 3-pin XLR connectors with dedicated line/mic/48v selection switch per input)
  • Audio Output: 1x Headphone Jack (3.5mm stereo mini TRS)
  • Reference Input: 1x Reference Input (BNC connector, analog color black)
  • Timecode: 1x LTC (BNC connector, 0.5 to 4.5Vpp)
  • Start/Stop Trigger: 2x LANC (1x 2.5mm top connector and 1x 2.5mm side connector)
  • Network Interface: 1x LAN connector (RJ45 connector, 10/100/1000)
  • Data Output: AJA Raw via 3G-SDI up to 120 fps or Thunderboltâ„¢ up to 30 fps
  • Weight: 6.4 lbs/2.9 kg (without top handle attached), 7.4 lbs/3.4 kg (with top handle attached)
  • Power
    • AC Range: 100-240 VAC 50/60Hz (AC adapter)
    • DC Range: 12-18Vdc, 5A maximum (4-pin XLR connector or 2-pin input connector)
    • Consumption: 38-42W typical, 45-47W maximum (Note: does not include power draw from 2-pin output connector)
    • Output: 2-pin power output connector, 10W recommended maximum
  • Temperature Range:
    • Safe Operating Temperature Range: 5C to 40C
    • Safe Storage Temperature Range (power OFF): -20C to 60C
  • Format, Frame Rate, Encoding and Output:
    • 4K
      • 4K (4096x2160) progressive 23.98/24/25/29.97/30/50/59.94/60/119.88/120
      • Apple ProRes 4444 or Apple ProRes 422 (all versions) up to/including 30 fps
      • Apple ProRes 422 (or a lower data rate ProRes version) for 50/59.94/60 fps
      • SDI output support for 23.98/24/25/29.97/30 fps (SDI 1-4 YCbCr, SDI 1-4 RGB or SDI 1 Raw)
      • SDI output support for 50/59.94/60 fps (SDI 1-4 YCbCr or SDI 1-2 Raw)
      • SDI output support for 119.88/120 fps (SDI 1-4 Raw)
    • Ultra HD
      • Ultra HD (3840x2160) progressive 23.98/24/25/29.97/30/50/59.94/60/119.88/120
      • Apple ProRes 4444 or Apple ProRes 422 (all versions) up to/including 30 fps
      • Apple ProRes 422 (or a lower data rate ProRes version) for 50/59.94/60 fps
      • SDI output support for 23.98/24/25/29.97/30 fps (SDI 1-4 YCbCr, SDI 1-4 RGB or SDI 1 Raw)
      • SDI output support for 50/59.94/60 fps (SDI 1-4 YCbCr or SDI 1-2 RAW)
      • SDI output support for 119.88/120 fps (SDI 1-4 Raw)
    • 2K
      • 2K (2048x1080) progressive 23.98/24/25/29.97/30/50/59.94/60
      • Apple ProRes 4444 or Apple ProRes 422 (all versions) up to/including 30 fps
      • Apple ProRes 422 (all versions) for 50/59.94/60 fps
      • SDI output support for 23.98/24/25/29.97/30 fps (SDI 1 YCbCr, SDI 1-2 RGB, or SDI 1 RGB)
      • SDI output support for 50/59.94/60 fps (SDI 1-2 YCbCr or SDI 1 YCbCr)
    • 1080 progressive
      • 1080 HD (1920x1080) progressive 23.98/24/25/29.97/30/50/59.94/60
      • Apple ProRes 4444 or Apple ProRes 422 (all versions) up to/including 30 fps
      • Apple ProRes 422 (all versions) for 50/59.94/60 fps
      • SDI output support for 23.98/24/25/29.97/30 fps (SDI 1 YCbCr, SDI 1-2 RGB, or SDI 1 RGB)
      • SDI output support for 50/59.94/60 fps (SDI 1-2 YCbCr or SDI 1 YCbCr)
    • 1080 interlaced
      • 1080 HD (1920x1080) interlaced 25/29.97/30
      • Apple ProRes 422 (all versions) up to/including 30 fps
      • SDI output up to/including 30 fps (SDI 1 YCbCr)



  • TOL Part #: CION
  • Manufacturer's Part #: CION
  • Model: CION
  • Product ID: 6264
