AJA Mini Converter - 3GDA

Part Number: 3GDA

AJA Mini Converter - 3GDA
  • AJA Mini Converter - 3GDA

Price:

$395.00
Add

Specifications

Interface 1x6 3G/HD/SD Reclocking Distribution Amplifier

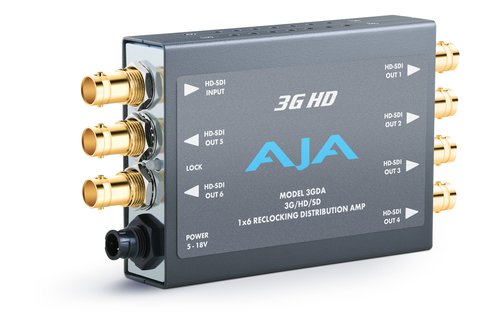

AJA 3GDA 1x6 3G/HD/SD Reclocking Distribution Amplifier

The 3GDA is a miniature, low-cost 1x6 3G HD-SDI/HD-SDI/SDI re-clocking distribution amplifier. Featuring six separately buffered SDI outputs, the 3GDA provides automatic input detection, re-clocking and cable equalization.

  • Compact SD/HD distribution
  • Six separately buffered outputs
  • 3G/HD/SD-SDI input, auto sensing
  • 3G cable equalization (1694 coax)
  • SD: 270mb, 350m, HD: 1.5Gb, 200m
  • Passes all ancillary data
  • Formats: 3Gb, 1.5Gb, 270Mb Auto Select
  • Inputs: 1 HD-SDI, SDI (SMPTE 259/292/296/424), 1x BNC
  • Outputs: 3G HD-SDI, HD-SDI, SDI, 6x BNC; Equalizing and re-clocking
  • Cable Equalization:
    • 270mb, 350m
    • 1.5Gb, 200m
    • 3Gb, 120m
    • Cable Equalization (1694 coax)
  • Input/Output Return Loss: >15db, 270Mb - 3Gb
  • Power: +5-18VDC, Regulated, 3 watts, Power Supply Required (included with purchase)
  • Size: 5.8" x 3.1 x 1" (131 x 79 x 25mm)



  • TOL Part #: 3GDA
  • Manufacturer's Part #: 3GDA
  • Model: Mini Converter - 3GDA
  • Product ID: 5663
