AJA Mini Converter - D5DA

Part Number: D5DA

Mini Converter - D5DA
  • Mini Converter - D5DA

Price:

$250.00

Specifications

Interface Serial Distribution Amplifier

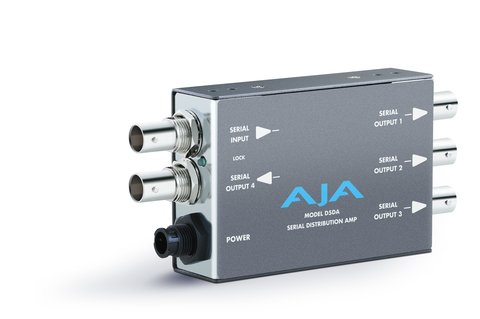

AJA Mini-Converter - D5DA

The D5DA is a multi-format, 1x4 reclocking SDI Distribution Amplifier. The D5DA can be used as a low cost SDI DA or repeater. The SDI input is re-clocked and equalized to 300 meters of cable. In addition, the multi-standard feature allows the D5DA to automatically adapt to 143, 177, 270, or 360Mb SDI inputs.

  • Compact 1x4 Re-Clocking SDI Distribution
  • Amplifier
  • Low Cost
  • Automatic multi-standard
  • Useful as a Repeater
  • Formats: 143, 177, 270, 360 Mb, Auto Select
  • Inputs: 1 SDI (SMPTE 259M), 1 x BNC
  • Outputs: 4 SDI (SMPTE 259M), Equalizing and reclocking, 4 x BNC
  • Return Loss: >15dB - 270Mhz (Input and Output)
  • User Controls:
    • External Dipswitch
    • Pedestal In NTSC Mode
    • Narrow/Wide Blanking
    • 2 or 3 Line Comb
  • Power: 5VDC Regulated, 2 Watts, Power Supply Required (included with purchase)
  • Size: 5.1" x 2.4" x 1" (131 x 61 x 25mm)



  • TOL Part #: D5DA
  • Manufacturer's Part #: D5DA
  • Model: Mini Converter - D5DA
  • Product ID: 5683
