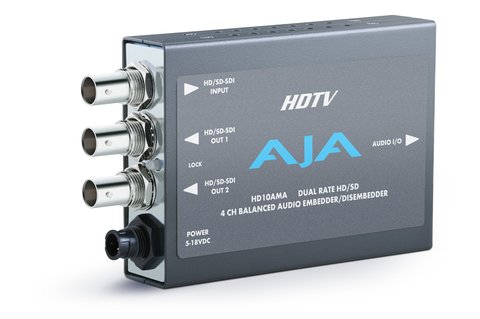

AJA Mini Converter - HD10AMA

out of5based on0 customer ratings
(0 customer reviews)
AJA
  • Interface: Analog Audio Embed/Disembed

ID: 5668

$795.00

Quantity

AJA HD10AMA Analog Audio Embed/Disembed

The HD10AMA is a dual rate 4-channel analog audio Embedder/Disembedder. The Disembedder is always functional providing 4 outputs. The Embedder is user selectable, on a channel pair basis, to either "pass" input audio or embed input audio from the breakout cable. Analog audio levels are selectable. The HD10AMA automatically detects and configures to the input video standard. 8 x XLR breakout cable included.

  • Dual rate HD-SDI/SDI
  • Embedder/Disembedder
  • 4-Channel Balanced Analog Audio I/O
  • Supplied XLR breakout cable
  • HD-SDI/SDI input, 2 HD-SDI/SDI outputs
  • Dipswitch configuration
  • Formats:
    • HD SMPTE 292/296M
    • SD SMPTE 259M
    • (Automatic Configuration)
  • Video Input: HD-SDI or SDI BNC
  • Video Outputs: HD-SDI or SDI BNC x2
  • Audio Inputs: 4 x Balanced Analog Audio, XLR
  • Audio Outputs: 4 x Balanced Analog Audio, XLR
  • Audio Converters: 24 bit
  • Embedded Audio: SMPTE 272M/299M, 24 bit, 48KHz synchronous
  • User Controls:
    • External Dipswitch
    • Embedder on/off, Ch pairs 1/2 - 3/4
    • Input group select 1-4
    • Output Group Select 1-4
    • Audio Level: Pro/Consumer, High/Low
  • Power: +5-18VDC, 5 watts. Power Supply Required (included with purchase)
  • Size: 5.8" x 3.1" x 1" (147 x 79 x 25 mm)
ID: 5668 BRAND: AJA PART NUMBER: HD10AMA Category:

Technical Specifications

Brand AJA
Product Type Analog and Digital Converters
Model Mini Converter - HD10AMA
Part Number HD10AMA
Interface Analog Audio Embed/Disembed
