AJA Mini Converter - Hi5

Part Number: Hi5

Mini Converter - Hi5
  • Mini Converter - Hi5

Price:

$345.00

Specifications

Interface HD-SDI to HDMI

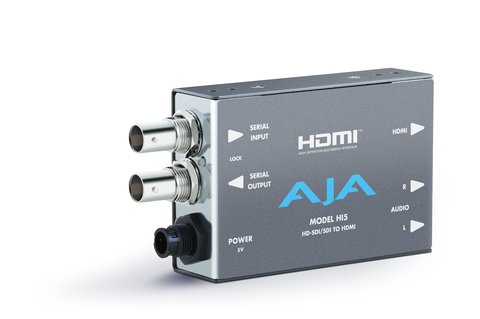

AJA Mini-Converter - Hi5

The Hi5 converts SDI or HD-SDI to HDMI for driving HDMI monitors. Embedded SD/HD-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. The Hi5 provides 2-Channel RCA style audio outputs for separate audio monitoring if needed. The Hi5 also provides a looping SD/HD-SDI output useful for connecting additional equipment, or for "daisy chaining" multiple monitors to the same SD-HD-SDI source.

  • SD/HD-SDI to HDMI
  • Full HDMI support including 10-bit video and 8 channels of embedded audio
  • Additional 2-Channel RCA jack audio output
  • Equalized looping SD/HD-SDI output
  • HDMI cable included
  • Input: SMPTE-259/274/292/296 SD/HD-SDI, 1 x BNC
  • Input Formats: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, and 1080p30
  • Outputs:
    • HDMI with embedded audio, 24-bit (selectable by internal jumper: 2 or 8 channels)
    • Audio, 2-channel RCA-style outputs at -10dBV (nominal), Channel 1 and 2
    • 1 Looping SD/HD-SDI output of the SDI input (75 ohm, unterminated)
  • HDMI: Standard Type A connector
    • Video: 8-bit RGB 4:4:4 or 10-bit YCbCr 4:2:2 (selectable by internal jumper)
    • Audio: 24-bit, with 2 or 8 embedded channels (selectable by internal jumper)
  • HDCP: The Hi5 does not encode the HDMI output with HDCP encryption. By definition, SD/HD-SDI inputs to the Hi5 are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs.
  • Power: +5VDC Regulated, 3 Watts, Power Supply Required (included with purchase)
  • Size: 4.6" x 2.4" x 1" (117 x 61 x 25mm)
  • 5 Year Warranty



  • TOL Part #: Hi5
  • Manufacturer's Part #: Hi5
  • Model: Mini Converter - Hi5
  • Product ID: 5643
