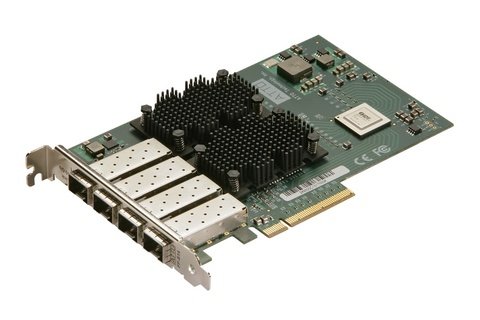

ATTO FastFrame NS14 Quad Port 10GbE PCIe 2.0 Network Adapter

out of5based on0 customer ratings
(0 customer reviews)
  • Warranty: 3 Years
  • Compatibility: PCI Express Card (x8)
  • Dimensions:
  • Weight: 1 lb.
  • RAID Compatibility:
  • Interface: 10GbE SFP+
  • Ports: 4

ID: 4364



Atto Technologies - FastFrame NS14 Quad Port 10GbE PCIe 2.0 Network Adapter - FFRM-NS14-000

FastFrame Quad-port SFP+ Ethernet Adapters conserve PCI slots for more flexible system design, while drawing up to 60% less power than competing solutions. A lower power rating means lower energy costs, lower data center maintenance fees, and fewer worries about heat dissipation. A single quad-port FastFrame adapter in a server provides an affordable, high-performance small network or storage solution for four clients. Or, link aggregation may be used to reduce server-to-switch bottlenecks.

In addition to broad support for Windows and Linux server and desktop operating systems, ATTO is a leader in high performance I/O connectivity for Mac OS X environments. ATTO also offers Xtend SAN, an iSCSI initiator for OSX, for a complete solution. Acquire your NICs for multiple-OS environments from a single source one familiar with the data-intensive demands of content editing.

10GbE Interface:

  • Data Center Bridging (DCB)/Enhanced Ethernet
  • Flow Control
  • MSI Support
  • Jumbo frames
  • Link Aggregation
Offloads (reduce CPU Overhead):
  • IPv4 Header Checksum
  • TCP/UDP Checksum (IPv4 & IPv6)
  • VLAN Offload
  • IPsec Offload (Windows)
For Windows & Linux:
  • NUMA & RSS (allows load-balancing across CPUs)
  • RMON
  • SNMP
  • SR-IOV

For Virtualization: Advanced Packet Filtering, VM Load Balancing, VMDq Teaming Support

Host Bus Specifications:

  • x8 mechanical and electrical PCIExpress 2.0 interconnect
  • Backward compatible with PCIExpress 1.1
  • Supports PCIe Base Spec 2.0, CEM Spec 2.0
Driver Support:
  • Windows Server 200x, Windows 7, Windows Vista, and Windows XP
  • Linux RHEL 5/6, SLES 10/11
  • OS X 10.6.8 and later
  • “Thunderbolt" Aware
  • VMWare ESX 3.5
ID: 4364 BRAND: ATTO PART NUMBER: FFRM-NS14-000 Category:

Technical Specifications

Brand ATTO
Product Type PCI Express Card
Model FastFrame NS14 Quad Port 10GbE PCIe 2.0 Network Adapter
Part Number FFRM-NS14-000
Warranty 3 Years
Compatibility PCI Express Card (x8)
Weight 1 lb.
RAID Compatibility
Interface 10GbE SFP+
Ports 4
