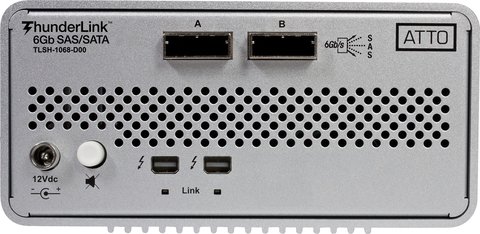

ATTO ThunderLink SH 1068

Part Number: TLSH-1068-D00

ATTO ThunderLink SH 1068
  • ATTO ThunderLink SH 1068
  • ATTO ThunderLink SH 1068




Interface Type Thunderbolt (2-port) to 6Gb/s SAS/SATA (8-Port)
Transfer Speed 10 Gbps
Compatibility Mac OSX 10.6.8 or higher

Atto - ThunderLink SH 1068 - TLSH-1068-D00

The ATTO ThunderLink SH 1068 acts as an external Thunderbolt to SAS/SATA adapter, connecting all-in-one systems and laptops to 6Gb/s SAS/SATA storage devices. 6Gb/s SAS Desklink devices are designed to provide flexible connectivity to SAS/SATA storage, and are engineered to manage latency for real-time environments. ATTO's Exclusive Advanced Data Streaming (ADSâ„¢) Technology maximizes CPU processes to deliver smooth and reliable data transfers and the highest consistent performance. ATTO pays close attention to detail in board design and signal integrity to minimize transmission errors and data corruption. These differentiating capabilities make ATTO the premier choice for high-performance direct-attached SAS/SATA storage connectivity.


  • Up to 800MB/s maximum throughput
  • Dual 10Gb Thunderbolt with Display Port and device daisy-chain support
  • Thunderbolt line speed performance
  • SAS 2.0, SAS, SATA and SATA II support
  • Supports up to 128 drives
  • Driver support for Mac OS X 10.6.8 or higher operating systems (Windows and Linux when Thunderbolt becomes available)
  • Exclusive Advanced Data Streaming (ADSâ„¢) Technology
  • ATTO Config Tool, a Graphical User Interface, for customized performance settings
  • Proven interoperability with support for leading storage hardware & software vendors
  • 3-year standard product warranty
  • RoHS Compliant

  • TOL Part #: TLSH-1068-D00
  • Manufacturer's Part #: TLSH-1068-D00
  • Model: ThunderLink SH 1068
  • Product ID: 4345
