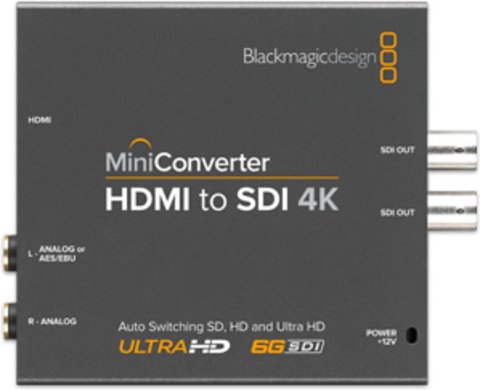

Blackmagic Design Mini Converter - HDMI to SDI 4K

Part Number: CONVMBHS24K

Blackmagic Design Mini Converter - HDMI to SDI 4K
  • Blackmagic Design Mini Converter - HDMI to SDI 4K
  • Blackmagic Design Mini Converter - HDMI to SDI 4K

Price:

$280.25
Add

Specifications

Interface HDMI to SDI 2
Product Line Broadcast Converters

Blackmagic Mini Converter - HDMI to SDI 4K

Convert from HDMI devices to SD, HD, 3G and 6G-SDI video in SD, HD and Ultra HD video formats. Easily embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs. Get the perfect solution to convert HDMI consumer cameras to SDI, or add SDI outputs to computers with HDMI connections!

  • SDI Video Output: Automatically matches the SD, HD and 6G-SDI HDMI video input
  • Analog Audio : 2 channels of professional balanced analog audio with standard 1/4 inch jack connections
  • AES/EBU Digital Audio: 2 channels of professional balanced digital with standard 1/4 inch jack connections
  • HDMI: HDMI type A in
  • Multi Rate Support: Auto detection of 6G-SDI, HD or standard definition SDI inputs
  • Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
  • Reclocking: Yes
  • SD Format Support: 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL HD Format Support: 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60,1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • 2K Format Support: 2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25
  • 4K Format Support: 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
  • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601
  • SDI Video Rates: SDI video connections are switchable between standard definition and high definition
  • SDI Video Sampling: 4:2:2
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
  • SDI Color Precision: 4:2:2
  • SDI Color Space: YUV
  • SDI Auto Switching: Automatically selects between SD SDI, HD-SDI and 6G-SDI
  • HDMI Format Support: 625/25 PAL, 525/29.97 NTSC, 525/23.98 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080p23.98, 2048x1080p24, 2048x1080p25, 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
  • HDMI Color Space: YUV and RGB
  • HDMI Color Precision: 4:2:2 and 4:4:4
  • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
  • Format Conversation: HD down conversion
  • Software Control: Mac OS X™ and Windows™ software upgrade via USB
  • Internal Software Upgrade: Via included updater application
  • Settings Control: Mini Switches or USB software
  • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
  • Power Consumption: 4.44 Watts
  • Operational Voltage Range: 12 - 31 Vdc
  • Operating temperature: 0° to 40° C (32° to 104° F)
  • Storage temperature: -20° to 45° C (-4° to 113° F)
  • Relative Humidity: 0% to 90% non-condensing
  • 4.49 x 3.63 x 0.9 in.
  • 8.6 oz
  • 3 Year Limited Manufacturer's Warranty



  • TOL Part #: BMD-CONVMBHS24K
  • Manufacturer's Part #: CONVMBHS24K
  • Model: Mini Converter - HDMI to SDI 4K
  • Product ID: 5614
