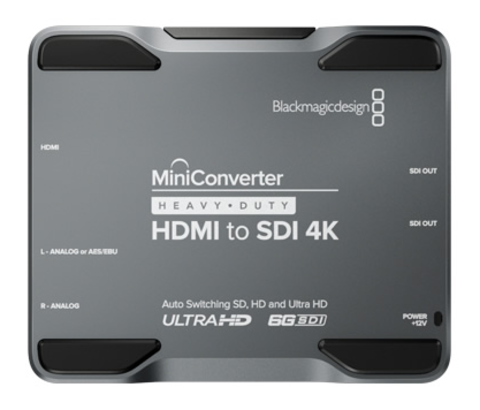

Blackmagic Design Mini Converter - Heavy Duty - HDMI to SDI 4K

Part Number: CONVMH/DUTYBHS4K

Blackmagic Design Mini Converter - Heavy Duty - HDMI to SDI 4K
  • Blackmagic Design Mini Converter - Heavy Duty - HDMI to SDI 4K
  • Blackmagic Design Mini Converter - Heavy Duty - HDMI to SDI 4K
  • Blackmagic Design Mini Converter - Heavy Duty - HDMI to SDI 4K

Price:

$327.75
Add

Specifications

Interface HDMI to SDI
Product Line Broadcast Converters

Blackmagic Design Mini Converter Heavy Duty HDMI to SDI 4

Convert SD, HD and Ultra HD HDMI video with HDMI/analog or AES/EBU audio to SDI. Mini Converter Heavy Duty models are machined from a solid block of aircraft grade aluminum so they are super tough and durable enough to be used in the most demanding live production and outside broadcast environments.

  • SDI Video Output: Automatically matches the SD, HD and 6G-SDI HDMI video input.
  • Analog Audio: 2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
  • AES/EBU Digital Audio: 2 channels of professional balanced digital with standard 1/4 inch jack connections.
  • HDMI: HDMI type A in
  • Multi Rate Support: Auto detection of 6G-SDI, Level B 3G-SDI, HD or standard definition SDI inputs.
  • Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
  • Reclocking: Yes
  • SD Format Support: 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL
  • HD Format Support: 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60,1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • 4K Format Support: 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
  • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601
  • SDI Video Rates: SDI video connections are switchable between standard definition and high definition.
  • SDI Video Sampling: 4:2:2
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
  • SDI Color Precision: 4:2:2
  • SDI Color Space: YUV
  • SDI Auto Switching: Automatically selects between SD SDI, HD-SDI and 6G-SDI
  • HDMI Format Support: 625/25 PAL, 525/29.97 NTSC, 525/23.98 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
  • HDMI Color Space: YUV and RGB
  • HDMI Color Precision: 4:2:2 and 4:4:4
  • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
  • Format Conversion: HD down conversion
  • Software Control: Mac OS X™ and Windows™ software upgrade via USB.
  • Internal Software Upgrade: Via included updater application
  • Settings Control: Mini Switches or USB software.
  • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
  • Power Consumption: 4.44 Watts
  • Operational Voltage Range: 12 - 31 Vdc
  • 5.00 x 4.21 x 1.16 in. / 1.14 lbs.
  • Operating temperature: 0° to 40° C (32° to 104° F)
  • Storage temperature: -20° to 45° C (-4° to 113° F)
  • Relative Humidity: 0% to 90% non-condensing
  • What's Included:
    • Mini Converter Heavy Duty HDMI to SDI 4K
    • Software CD
    • 12V universal power supply with international socket adapters
  • 3 Year Limited Manufacturer's Warranty



  • TOL Part #: BMD-CONVMH/DUTYBHS4K
  • Manufacturer's Part #: CONVMH/DUTYBHS4K
  • Model: Mini Converter - Heavy Duty - HDMI to SDI 4K
  • Product ID: 5871
