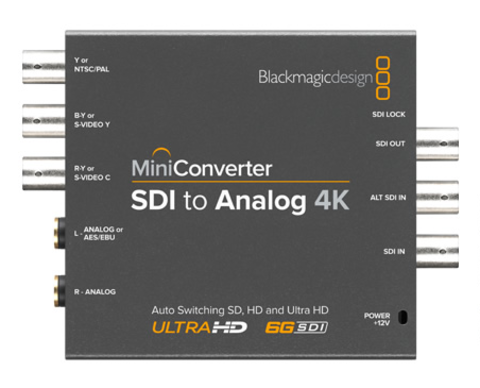

Blackmagic Design Mini Converter - SDI to Analog 4K

Part Number: CONVMASA4K

Blackmagic Design Mini Converter - SDI to Analog 4K
  • Blackmagic Design Mini Converter - SDI to Analog 4K
  • Blackmagic Design Mini Converter - SDI to Analog 4K
  • Blackmagic Design Mini Converter - SDI to Analog 4K

Price:

$280.25
Add

Specifications

Interface SDI to Analog
Product Line Broadcast Converters

Blackmagic Design Mini Converter - SDI to Analog 4K - BMD-CONVMASA4K

Convert from SD, HD, 3G and 6G-SDI video to analog in HD/SD component, NTSC and PAL video. The built in down converter means you can even connect Ultra HD sources to component video in SD or HD as well as NTSC and PAL video!

Specifications:

  • SDI Video Input: Switchable between SD, HD and 6G-SDI
  • SDI Video Output: Automatically matches the SD, HD and 6G-SDI video input
  • Analog Video: NTSC, PAL and S-Video from and component HD from 6G-SDI input
  • Analog Audio: 2 channels of professional balanced analog audio with standard 1/4 inch jack connections
  • AES/EBU Digital Audio: 2 channels of professional balanced digital with standard 1/4 inch jack connections
  • SDI Redundant Input: Automatically switches over if main SDI input is lost
  • Multi Rate Support: Auto detection of 6G-SDI, HD or standard definition SDI inputs
  • Updates and Configuration: Via USB 2.0 high speed (480 Mb/s)
  • Reclocking: Yes
  • SD Format Support: 525/29.97 NTSC, 625/25 PAL
  • HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
  • 2K Format Support: 2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25
  • 4K Format Support: 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
  • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601
  • SDI Video Rates: SDI video connections are switchable between standard definition and high definition and UHD
  • SDI Video Sampling: 4:2:2
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
  • SDI Color Precision: 4:2:2
  • SDI Color Space: YUV
  • SDI Auto Switching: Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI
  • Analog Format Support: 625/25 PAL, 525/29.97 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
  • Analog Color Space: YUV
  • Analog Color Precision: 4:2:2
  • Format Conversion: HD down conversion
  • Software Control: Mac OS Xâ„¢ and Windowsâ„¢ software upgrade via USB
  • Internal Software Upgrade: Via included updater application.
  • Settings Control: Mini Switches or USB software
  • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
  • Power Consumption: 8.04 Watts
  • Operational Voltage Range: 12V
  • Operating temperature: 0° to 40° C (32° to 104° F)
  • Storage temperature: -20° to 45° C (-4° to 113° F)
  • Relative Humidity: 0% to 90% non-condensing
  • 3 Year Warranty
  • 4.84 x 3.63 x 0.9 in. / 10.68 oz



  • TOL Part #: BMD-CONVMASA4K
  • Manufacturer's Part #: CONVMASA4K
  • Model: Mini Converter - SDI to Analog 4K
  • Product ID: 5627
