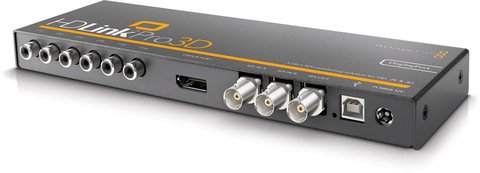

Blackmagic Design HDLink Pro 3D DisplayPort

Part Number: HDL-PRODISPORT

Blackmagic Design HDLink Pro 3D DisplayPort
  • Blackmagic Design HDLink Pro 3D DisplayPort
  • Blackmagic Design HDLink Pro 3D DisplayPort

Price:

$470.25
Add

Specifications

Product Line Video Monitoring

Blackmagic Design HDLink Pro 3D DisplayPort

The world's first SDI monitoring solution for deep bit depth DisplayPort monitors now supports full 3D stereoscopic and HDMI 3D frame packing! Get the highest quality in both 4:2:2 and 4:4:4.Perfect for SD, HD and feature film 2K monitoring, HDLink Pro supports 1.62 and 2.7 Gb/s DisplayPort monitors with 1, 2 and 4 lanes as well as DVI and HDMI monitors with an adapter.

Connections

  • SDI Video Input: 2 x BNC inputs switch between SD-SDI, HD-SDI 4:2:2, HD-SDI 4:4:4, 2K via SDI and dual-link HD-SDI 4:4:4.
  • SDI Video Output: 1 x BNC active loop through output switches between SD, HD 4:2:2, HD 4:4:4 and 2K.
  • HDMI Video Output: Via DisplayPort to HDMI adapter (not included). Supports HDMI displays, such as a TV or video projector, up to 1920 x 1080 resolution, including 3D frame packing support.
  • Analog Audio Output: 6 x unbalanced 24 bit analog outputs on RCA connectors -10dB, de-embedded from SDI input.
  • HDMI Audio Output: Via DisplayPort to HDMI adapter (not included).
  • DVI-D Video Output: Supports SD, HD and 2K using Dual Link DVI-D displays up to 30 inches 2560 x 1600 in size when used with a DisplayPort to dual link DVI adapter (not included).
  • HDMI Connection: Via DisplayPort to HDMI adapter (not included).
  • DVI-D Audio Output: DVI-D supports video only. Use RCA analog audio outputs for audio monitoring.
  • DisplayPort Audio Output:Via DisplayPort output.
  • Multi Rate SDI Support: 270 Mb/s standard definition, 1.5 Gb/s high definition 4:2:2, 3 Gb/s 4:4:4 high definition and 2K film.
  • DisplayPort Video Output: DisplayPort Video
  • Output: Supports SD, HD and 2K using DisplayPort monitors up to 30 inches 2560 x 1600 in size.
  • Updates and Configuration: USB 2.0 High Speed (480Mb/s) interface.

Standards

  • SD Format Support via DisplayPort: 625/25 PAL and 525/29.97 NTSC.
  • SD Format Support via DVI-D: 625/25 PAL and 525/29.97 NTSC.
  • SD Format Support via HDMI: 625/25 PAL and 525/29.97 NTSC.
  • HD Format Support via DisplayPort: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080i50, 1080i59.94, 1080i60, 1080p50, 1080p59.94, 1080p60.
  • HD Format Support via HDMI: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080i50, 1080i59.94 and 1080i60 , 1080p50, 1080p59.94 and 1080p60.
  • HD Format Support via DVI-D: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080i50, 1080i59.94, 1080i60, 1080p50, 1080p59.94, 1080p60.
  • 2K Format Support via DVI-D: 2048 x 1556p23.98, 2048 x 1556p24 and 2048 x 1556p25.
  • 2K Format Support via Display Port: 2048 x 1556p23.98, 2048 x 1556p24 and 2048 x 1556p25.
  • SDI Compliance: SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI.
  • 3D Modes: HDMI Frame Packing, Side by Side, Line by Line, Top and Bottom.
  • SDI Video Sampling: 4:2:2 and 4:4:4.
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
  • SDI Color Precision: 4:2:2 10 bit and 4:4:4 10 bit.
  • SDI Color Space: 4:2:2 YUV, 4:4:4 YUV and 4:4:4 RGB.
  • HDMI Configuration: HDMI automatically configures to connected display.
  • HDMI Resolution: Pixel for pixel HD resolution input to connected device.
  • DVI-D Resolution: Pixel-for-pixel display on LCD displays.
  • DVI-D Configuration: Automatic adjustment using VESA E-EDID1.3.
  • DisplayPort Configuration: Automatic adjustment using VESA E-EDID1.3.
  • DisplayPort Resolution: Pixel-for-pixel display on LCD displays.

Extras

  • Software Control: HDLink Utility included free for Windows 7 and Mac OS X.
  • Internal Software Upgrade: Automatically when new HDLink Utility is installed.
  • Gamma Correction: Independently adjustable 3D lookup tables per color component. Interactive real time adjustment of lookup tables.
  • Real Time Processing: Adaptive pull-down processor guarantees smooth motion display.
  • Video Scaling via DVI-D: Pixel for pixel display. Scale up SD to fill display in 2D modes. Scale up HD to fill display in 2D modes.
  • Physical Installation: Small brick style compact design.
  • Power Supply: 12 Volt universal power supply included. IEC power cable required.
  • Product Warranty: 3 Year Limited Manufacturer's Warranty.

Display Requirements

  • Interface: DisplayPort connection to LCD computer monitor or use an adapter to connect to a DVI-D or HDMI display.
  • Resolution via DVI-D: 1920 x 1200 or 1920 x 1080 required for HD1080 video SDI formats. 1280 x 800 recommended for HD720 video SDI formats. 2560 x 1600 required for 2K feature film formats. DVI-D displays generally do not support 720p50 or 1080p50 but most recent HDMI displays do.
  • Resolution via DisplayPort: 1920 x 1200 or 1920 x 1080 required for HD1080 video SDI formats. 1280 x 800 recommended for HD720 video SDI formats. 2560 x 1600 required for 2K feature film formats. DisplayPort displays generally do not support 720p50 or 1080p50 but most recent HDMI displays do.
  • Capturing from copy-protected HDMI sources; The HDMI input of a display must accept either:
    • 1920 x 1080 for HD1080 video SDI formats or
    • 1280 x 720 for HD720 video SDI formats
    A Full HD display should be considered if pixel for pixel video is desired as other HDMI displays present at a lower resolution.
  • Refresh Frame Rate for DVI: Nominal 60Hz, however 48 to 75 Hz recommended.



  • TOL Part #: BMD-HDL-PRODISPORT
  • Manufacturer's Part #: HDL-PRODISPORT
  • Model: HDLink Pro 3D DisplayPort
  • Product ID: 5923
