Blackmagic Design Videohub Master Control

Part Number: VHUB/WMSTRCRL

Blackmagic Design Videohub Master Control
  • Blackmagic Design Videohub Master Control
  • Blackmagic Design Videohub Master Control
  • Blackmagic Design Videohub Master Control

Price:

$660.25
Add

Specifications

Product Line Routing and Distribution

Blackmagic Design Videohub Master Control

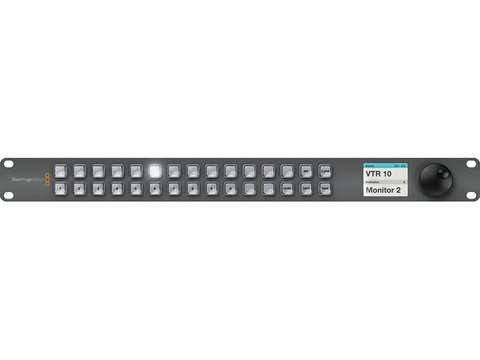

When you need to access your whole router without sacrificing speed, then Videohub Master Control lets you scroll your router sources and destinations with the easy to use spin knob control or via direct button entry. You can even see all routes on the beautiful LCD! Powers via DC or the Ethernet connection.

  • Ethernet: RJ45 Ethernet with Power over Ethernet supported, without power supplied on loop Ethernet output.
  • Updates: USB 2.0 high speed (480Mb/s) interface.
  • Power: +12V DC input
  • Hardware Control: 15 assignable buttons with scroll wheel for fast selection of source and destination. LCD information screen.
  • Internal Software: Internal Software upgrade via included firmware updater application via USB.
  • Physical Installation: 1 rack unit size. Less than an inch deep.
  • Button Configuration: Included free for Windows™ and Mac OS X™ via USB 2.0 high speed (480Mb/s) interface.
  • Power Fail Protection:Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
  • Power Supply: 1 x Universal power supply included with international socket adapters for all countries.
  • Weight: 827g
  • Depth (not including connectors): 36mm
  • Width: 482mm
  • Overall depth (including connectors): 40mm
  • Height: 44mm
  • Operating temperature: 0° to 40° C (32° to 104° F)
  • Storage temperature: -20° to 45° C (-4° to 113° F)
  • Relative Humidity: 0% to 90% non-condensing
  • What's Included:
    • Videohub Master Control
    • Universal power supply included with international socket adapters
  • 12 Months Limited Warranty



  • TOL Part #: BMD-VHUB/WMSTRCRL
  • Manufacturer's Part #: VHUB/WMSTRCRL
  • Model: Videohub Master Control
  • Product ID: 5958
