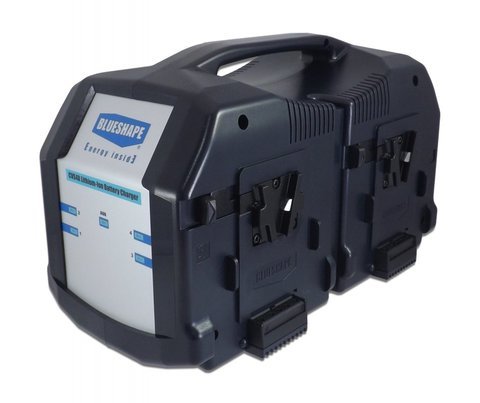

Blueshape CVS4X 4-Channel V-Mount Battery Portable Charger

Part Number: CVS4X

Blueshape CVS4X 4-Channel V-Mount Battery Portable Charger
  • Blueshape CVS4X 4-Channel V-Mount Battery Portable Charger
  • Blueshape CVS4X 4-Channel V-Mount Battery Portable Charger
  • Blueshape CVS4X 4-Channel V-Mount Battery Portable Charger
  • Blueshape CVS4X 4-Channel V-Mount Battery Portable Charger
  • Blueshape CVS4X 4-Channel V-Mount Battery Portable Charger

Price:

$1,317.65
Add

Specifications

Compatibility V-Mount
Compatibility V-Mount batteries

Blueshape CVS4X 4 Channel V-Mount Battery Portable Charger

Shaped like the CVS8X, this unit provides a low-cost alternative with 4 positions and can charge two 70Wh batteries simultaneously in 2.5 hours or two 210Wh units in around 6.5 hours.  An auxiliary DC output provides 13.8V each via an XLR connector.

Designed exclusively for V-Lock Li-Ion batteries, can charge up to 4 V-Mount batteries: 2 batteries fully simultaneously, 2 batteries in sequence.
 Simple but exhaustive LED display to show charging status information on each channel.
Compact and robust design with a convenient handle for easy transportation.
IPCS and CTP features provided for improved battery and charger protection.
 Provided with 1 Auxiliary DC output power source at 13.8V 110W through an XLR 4 pin socket.
 USB connection to interface the CVS4X with computer: up to 4 chargers can be monitored by a single PC through BSCVMon (provided in the box with the special USB cable).

Specifications:

  • Input: AC 100-240V 47-63Hz
  • Output:

    • 4x DC 16.8V 4.8A
    • 1x AUX DC 13.8V 110W max.
  • Charging current:

    • 4.8A per channel when only 1 batteries are charging

    • 3.0A per channel when more than 2 batteries are charging
  • Data socket
  • Size: 170 x 150 x 280mm (6.39" x 5.91" x 11.02)
  • Weight: 2.2Kg (4.86lbs)



  • TOL Part #: BLS-CVS4X
  • Manufacturer's Part #: CVS4X
  • Model: CVS4X 4-Channel V-Mount Battery Portable Charger
  • Product ID: 5833
