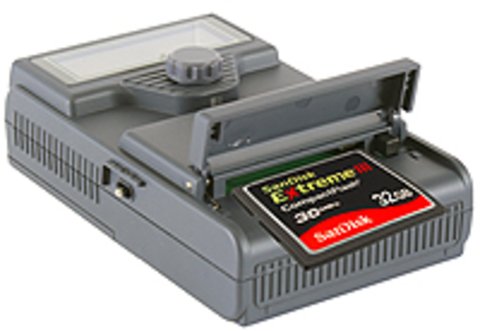

Datavideo DN-60 Compact Flash Field Recorder

Part Number: DN-60

DN-60 Compact Flash Field Recorder
  • DN-60 Compact Flash Field Recorder
  • DN-60 Compact Flash Field Recorder
  • DN-60 Compact Flash Field Recorder

Price:

$539.00

Specifications

Media Type Compact Flash Card
Dimensions 4.5 x 3.5 x 1.75
Weight .5 lbs.
Interface FireWire (IEEE 1394)

Datavideo - DN-60 Compact Flash Field Recorder for DV/HDV Video

Datavideo's DN-60 field recorder utilizes the latest solid state technology of removable and high capacity CF memory cards. Recording times are far longer than traditional tape, there are no drop-outs and using Datavideo's Direct to Timeline technology, you will speed up the process from acquisition to editing, thanks to file transfer, rather than traditional capturing. The new technology provides hours of continuous high definition recordings; enables the advantage of a tapeless acquisition in even the toughest environments.

The DN-60 is powered by using 4 traditional or rechargeable AA batteries. Depending on the type of batteries utilized; a standard AA battery should offer approximately 2 hours of continuous recording. DN-60 offers connections directly to DV or HDV camcorders via a single Firewire cable. The DN-60 is lightweight and easy to mount to camcorders. It is perfect for news gathering, location shoots, security systems, scientific and medical recording.

DN-60 Key Features

  • Many Video Formats Supported: DN-60 supports AVI, MOV, MXF-OP1A, M2T, Quicktime, and HDV through its quick utility program.
  • Convenient & Durable: DN-60 is small enough to be portable and is designed with a shockproof shell.
  • 16GB CF Card Included*: DN-60 comes packaged with a 16GB Compact Flash Memory Card.* Details in Full Specs. below.*
  • AA Batteries: Standard AA Batteries may be used for over two hours of continuous recording. Or use the external power adapter.
  • Store & Play: DN-60 can be used as a playback device via firewire cable.
  • Triggerable Recording: DN-60′s recording is able to be triggered by the camera.
  • 8 sec. Pre-Record Buffer: An 8-second pre-record buffer is useful in recording unexpected events especially in science, research, outdoor recording, or security applications.
  • Built-in Intervalometer: DN-60 has a built-in intervalometer for time lapse recording.
  • Tripod / Hotshoe Mountable: DN-60 is ready for mounting on a tripod or hotshoe.

Additional Specs:

  • Control Interface: RS-232 compatible with Sony Protocol
  • Power: 12V 0.5A 2W DC 110/220 power supply / Note: When the power supply is physically connected to the recorder, the circuit from the recorder will not switch to battery power.
  • Connections
    Video:
    Input: IEEE 1394 Firewire
    Output: IEEE 1394 Firewire
    Audio:
    Input: IEEE 1394 Firewire
    Output: IEEE 1394 Firewire
  • What's in the Box:
    DN-60 Unit
    1x 20 6 pin to 6 pin firewire cable
    1x 20 4 pin to 6 pin firewire cable
    12V 0.5A 2W DC DC 110/220 power supply
    16GB Compact Flash Card*
    *Note: 16GB CF Card only available on DN-60 #00312901 and higher, sold in the USA.
  • Dimensions:
    Length: 4.5 in. / 114.3 mm
    Width: 3 in. / 76.1 mm
    Height: 1.25 in. / 31.75 mm
    Weight: 5.7 oz. / 0.14 kg
  • Compatible CF Cards: DN-60 works with most standard Compact Flash Memory Cards. However, the following cards have confirmed functionality:
    SanDisk Extreme III 2GB (30MB/s)
    SanDisk Extreme III 4GB (30MB/s)
    SanDisk Extreme III 8GB (30MB/s)
    SanDisk Extreme Pro 64GB (90MB/s)
    SanDisk Ultra 16GB (new, 30MB/s)
    *We recommend using SanDisk cards whenever possible.
  • Max. Recording Time
    Data Rate Size DV25, HDV, DVC Pro 25 Approx. Max Record Time DVC Pro 50 Approx. Max Record Time
    30MB/sec 2GB 7 mins 3 mins
    30MB/sec 8GB 30 mins 15 mins
    30MB/sec 16GB 1 hour 30 mins
    60MB/sec 32GB 2 hours 15 mins 1 hour 7 mins
    90MB/sec 64GB 4 hours 15 mins 2 hours 10 mins
  • Video Recording Formats:
    SD: DV25, DVC Pro-25, DVC Pro-50
    Frame Rates: -AVI 2 -AVI 2 – 24p -Canopus AVI -Matrox AVI QuickTime – supports recordings larger than 2GB QuickTime 24p – supports recordings larger than 2GB MXF OP1A
    DTE Formats: -AVI 2 -AVI 2 – 24p -Canopus AVI -Matrox AVI QuickTime – supports recordings larger than 2GB QuickTime 24p – supports recordings larger than 2GB MXF OP1A
    HDV
    Frame Rates: -720p @ 24*, 25*, 50* and 60* fps -1080i @ 24F*, 30F*, 25F*, 50 and 60 fps * Supported in the M2T file format only.
    DTE Formats: -M2T – supports recordings larger than 2GB
  • Audio Recording Format:
    HDV Embedded MPEG-1 Layer 2
    Sampling rate: 48kHz
    Bitrate: 384Kbps
    DV25 Embedded 2-channel (16-bit, 48Hz)



  • TOL Part #: DN-60
  • Manufacturer's Part #: DN-60
  • Model: DN-60 Compact Flash Field Recorder
  • Product ID: 4231
