Drobo 5N -

Part Number: DRDS4A21

Drobo 5N -
  • Drobo 5N -
  • Drobo 5N -




Count 5 Bays
Drive Interface SATA II/III
Computer Interface Gigabit Ethernet Port
Warranty 2 Years
Dimensions 5.9 x 7.3 x 10.3 Inches

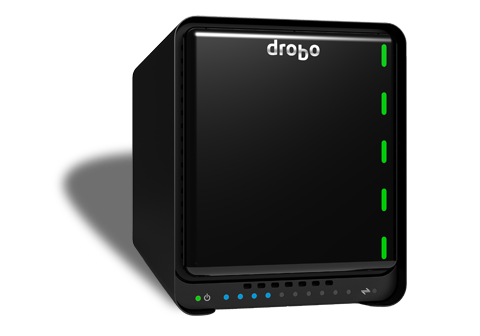

Drobo 5N

Built on award-winning BeyondRAID technology with single- or dual-drive redundancy, Drobo 5N protects your data without any user interaction, even in the event of multiple drive failures. Drobo 5N supports up to five 3.5" SATA II/III hard drives or solid state drives, and one mSATA solid state drive (drives of any manufacturer, capacity, spindle speed, and/or cache can be used). Drives are hot-swappable so you can add more drives or swap out the ones you have for larger drives whenever you need more space.

As you fill your Drobo with data, the ten capacity gauge lights on the front start to glow blue. If 40% of the overall capacity is used, four lights will be illuminated. Drobo is so simple that the instructions fit inside the front cover, telling you what these lights mean and what actions you need to take. For example, if a drive does happen to fail, the light for that drive will blink red. If you are running low on space, an empty drive bay shows yellow, indicating that you should insert another drive in that bay. 5N is space efficient, attractive, and quiet.

Drobo protects you not only from drive failure, but has a battery backup to prevent data loss from a power failure as well. This battery protects all data in the Drobo's memory, and all the data in its cache that hasn't even made it to the drive yet! Drobo 5D will stay alive with the battery long enough for data to be written to non-volatile storage, making sure all your important files are still safe. Designed to last the life of the product, the battery recharges itself when power is connected.

The Drobo 5N is equipped with a single Gigabit Ethernet port for network connectivity, and connects directly to your network to make sharing your data easy. Plug 5N into any switch or wireless router and you're ready to go. It even connects directly to the Ethernet port on your computer without having to configure any settings.

Data-Aware Tiering

To accompany the introduction of SSD support, the Drobo 5D features Data-Aware Tiering technology to intelligently use the high-performance flash in these drives to speed up the transfer of data. It automatically builds a "transactional" (SSD) and "bulk" (HDD) tier of drives, and writes the data that would benefit most from faster read and write speeds to the transactional SSD tier. Additionally, if data stored in the bulk tier is being read frequently it will become "hot" and be moved to the transactional tier, and vice versa. All you have to do to engage this tiering function is insert an SSD drive into the Drobo.

Supported Operating Systems:

  • Mac OS X 10.7.x Lion
  • Mac OS X 10.8.x Mountain Lion
  • Windows 7 SP1 32 and 64 bit
  • Windows 8 32 and 64 bit

Box Contents:

  • Drobo 5N
  • 6 ft (1.8 m) Ethernet cable
  • 6 ft (1.8 m) power cord with power supply
  • Quick Start Card

Drobo Recommended Drives for the 5D available at TapeOnline:

  • TOL Part #: 5N
  • Manufacturer's Part #: DRDS4A21
  • Model: 5N
  • Product ID: 4258
