HighPoint RocketRAID 2721 Hybrid Mini-SAS PCI Express RAID Controller Card

out of5based on0 customer ratings
(0 customer reviews)
HighPoint
  • Compatibility: PCI Express Card (x8)
  • Dimensions: 4.72 x 2.68 x 0.06 Inches
  • RAID Compatibility: RAID 0, 1, 5, 6, 10, 50, JBOD
  • Interface: Hybrid Mini-SAS (SFF-8087 + SFF-8088)
  • Ports: 2

ID: 5845

$249.00

Quantity

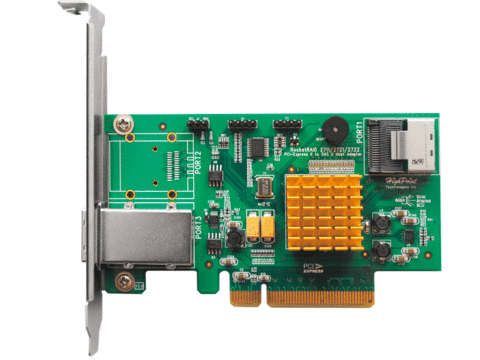

HighPoint RocketRAID 2721

RocketRAID 2721 PCI Express 2.0 Raid Controller card from HighPoint is a high performance SAS RAID solution. The hybrid Mini-SAS port configuration (SFF-8087 + SFF-8088) supports up to 8 SAS/SATA Hard Disk Drives and Solid State Drives in a variety of RAID and non-RAID configurations including single disk, JBOD and RAID 0, 1, 5, 6, 10 and 50. RocketRAID 2721 HBA (host bus adapter) is fully backwards compatible with SAS/SATA 3Gb/s devices, and compliant with all major operating systems including Windows, Linux, FreeBSD & Mac OS X.

HighPoint RocketRAID 2721 is fully compliant with the Industry Serial Attached SCSI Specification, which allows them to support LTO tape drives and SAS/SATA Hard Disk Drives, simutaneously, for Windows 8.1 / 8 / 7 and Linux PC Platforms.

  • Host Bus Interface: PCI-Express 2.0 x 8
  • Number of Device Channels: 8
  • Connector Type: 1x Internal / 1x External Mini-SAS ports
  • RAID Levels Supported: 0, 1, 5, 6, 10, 50, JBOD
  • Form Factor: Low Profile
  • Board Dimensions: 4.72" L x 2.68" H x 0.06" W
  • Alarm/Buzzer: Yes
  • Activity/Failure LED: Yes (Internal ports only)
  • OS Support: Windows Server 2012, 2008 / Windows 8, 7, Vista / Linux Distributions / FreeBSD
ID: 5845 BRAND: HighPoint PART NUMBER: RR2721 Category:

Technical Specifications

Brand HighPoint
Product Type PCI Express Card
Model RocketRAID 2721 Hybrid Mini-SAS PCI Express RAID Controller Card
Part Number RR2721
Warranty
Compatibility PCI Express Card (x8)
Dimensions 4.72 x 2.68 x 0.06 Inches
Weight
RAID Compatibility RAID 0, 1, 5, 6, 10, 50, JBOD
Interface Hybrid Mini-SAS (SFF-8087 + SFF-8088)
Ports 2
