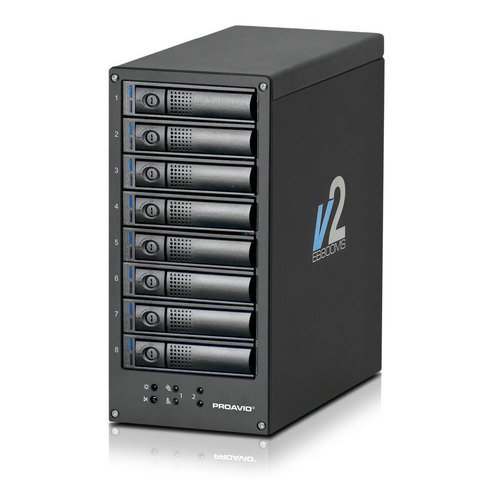

Proavio 32TB EB800MS V2 with RAID Controller Card
EB800MS v2 desktop storage solutions offer best-in-class reliability, high speed 12Gb/s SAS
performance and industry-proven support for demanding post production environments. These drives feature an innovative cable-less design and a new space saving enclosure design. EB800MS v2 comes equipped with high efficiency 80+ power technology and a self-monitoring cooling system which reduces its operational costs while providing an acoustically superior, fail-safe, creative experience.
The EB800MS v2 provides sustained throughput of up to 2,000MB/s (in RAID 5 mode), making it one of the best storage solutions for high resolution media including 2K, 4K, and uncompressed HD. Backed by a standard 3-year factory warranty and a next-business day advanced replacement service program with all solution packages.
EB800MS v2 desktop storage solutions offer best-in-class reliability , high speed 12Gb/s SAS
performance and industry-proven support for demanding post production environments.
Spare hard drive modules are also available!
- Form Factor: 8-Disk, Desktop, 12Gb/s SAS JBOD Storage Array
- 8) 1TB 3.5" 7200RPM SATA Hard Drives
- Includes PCIe 3.0 RAID Controller Card
- RAID: AC1883x: PCI-e 3.0, 12G SAS RAID Controller. For Mac OS, Windows and Linux
- RAID level 0 ( 0+1 ), 5, 6 & JBOD
- Interface Ports: (2) SFF8644, 12G SAS Ports
- Disk Support:
- 3.5", 7.2K SATA, 6G
- 3.5", 7.2K/10K SAS, 6G
- 2.5" SATA/SAS SSD
- General OS Support: Mac OS, Windows, Linux
- System Security: Locking Disk Drive Bays
- Power Supply: Single, 250W, 80PLUS Energy Efficient PSU. 90~264 VAC, 46Hz~63Hz
- System Cooling: (2) 8CM, Hot Swap, Smart Cooling Modules with Self-monitoring Fault Detection
and ZERONOISE™ ASC (Advanced Sound Control) for Studio Environments
- System Management: Audible Thermal Alarm, Status LED Indicators. Email Notifications (RAID Models Only)
- Operating Temperature: 50°F ~ 104°F
- Relative Humidity: 5% ~ 85% Non-condensing
- Weight: 34 lbs
- Dimensions: (H) 11" x (W) 5.25" x (D) 9.25"
- Compliance: RoHS, CE, TUV, FCC
- Thunderbolt: Via HighPoint RocketStor 6328 SAS-to-Thunderbolt 2 RAID Controller or ATTO ThunderStream 3808D
